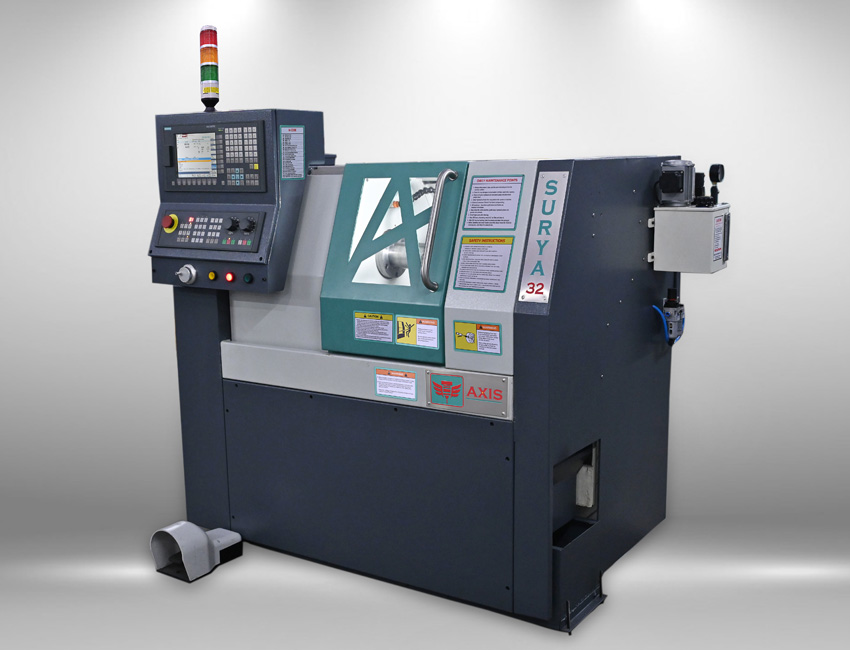

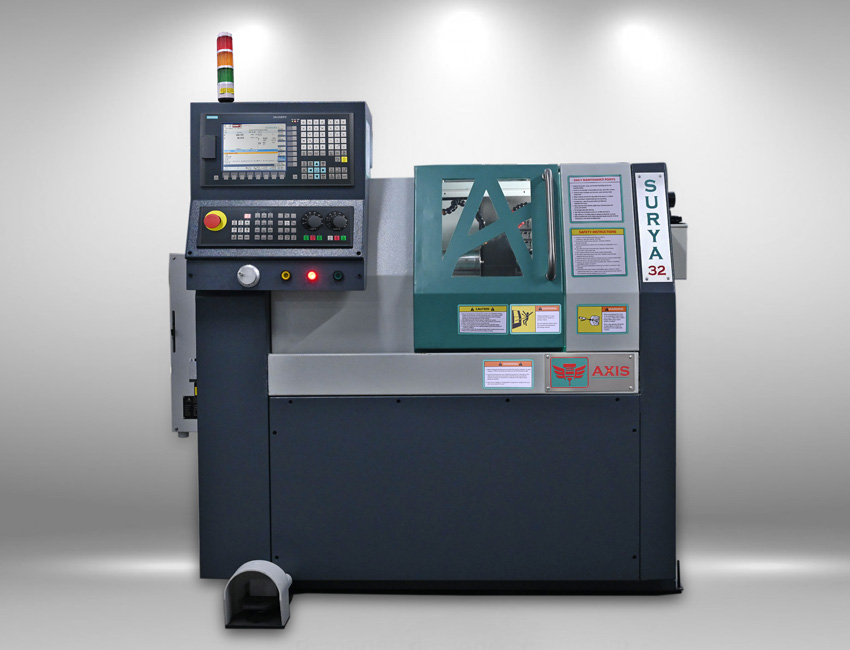

Surya - 32
![](images/surya/thumb/1.jpg)
![](images/surya/thumb/2.jpg)
![](images/surya/thumb/3.jpg)
![](images/surya/thumb/4.jpg)
![](images/surya/thumb/5.jpg)
![](images/surya/1.jpg)
![](images/surya/2.jpg)
![](images/surya/3.jpg)
![](images/surya/4.jpg)
![](images/agni/diagram.jpg)
Controller System | Siemens / Fanuc |
CAPACITY | |
Swing Over Table | 100 mm |
Swing Over Way Cover | 320 mm |
Maximum Cutting Dia | 32 mm |
Maximum Turning Length | 100 mm |
SPINDLE | |
Spindle | A 32 |
Clamp / Declamp | Pneumatic |
Maximum Bar Capacity | 30 mm |
Maximum Spindle Speed | 3500 RPM |
Spindle Motor Power | 2.2 KW |
Standard Collet Size | A 32 |
AXIS | |
X-Axis Stroke | 240 mm |
Z-Axis Stroke | 105 mm |
X & Z Axis Rapid Rate | 15 m/min |
TOOLING | |
Tool Arragement | Liner - Gang Tooling |
Borring Bar Dia Maximum | 25 mm |
Od Turning Tool Size | 20 X 20 mm |
LUBRICANT & COOLANT | |
Lubrication Tank Capacity | 3 Llitre |
Coolant Tank Capacity | 60 Litre |
OVERALL MACHINE DIMENSIONS | |
L X W X H | 1450 X 950 X 1350 |
OVERALL MACHINE WEIGHT | |
Without Packing | Approx 1050 KG |
- A32 Collet Spindle
- High Speed 3500rpm Spindle
- Liner Motion Guideways
- 20m/min Rapid Traverse Rate
- High Pricision Ground Ball Screw X And Z Axis
- Separate Coolant Tank With Easy Maitenance
- Slant Bad For Efficent Chip Disposal
- Penumatic Clamp And Declamp System
- Servo Spindle And Axis Drives
- Liner Motion Guideways
- Automatic Centralized Oil Lubrication
- 20X20 OD Tool Holder Block (02 Nos)
- Ø25 Boring Bar Holder Block (03 Nos)
- Set of Sleeves
- Drawing And Tools Holding Side Plate Panel AC For Electricals
- Voltage Stabilizer
- Chip Conveyor
- Special Tool Holder Block
- A2-4 Cartrige Spindle with Ø135mm Power Chuck And Hydraulic Rotary Cylinder
Note : Owing to continuous up-gradation of our products, the specification may change and to be reconfirmed at the time of ordering. Features shown may not be part of the standard equipment.
