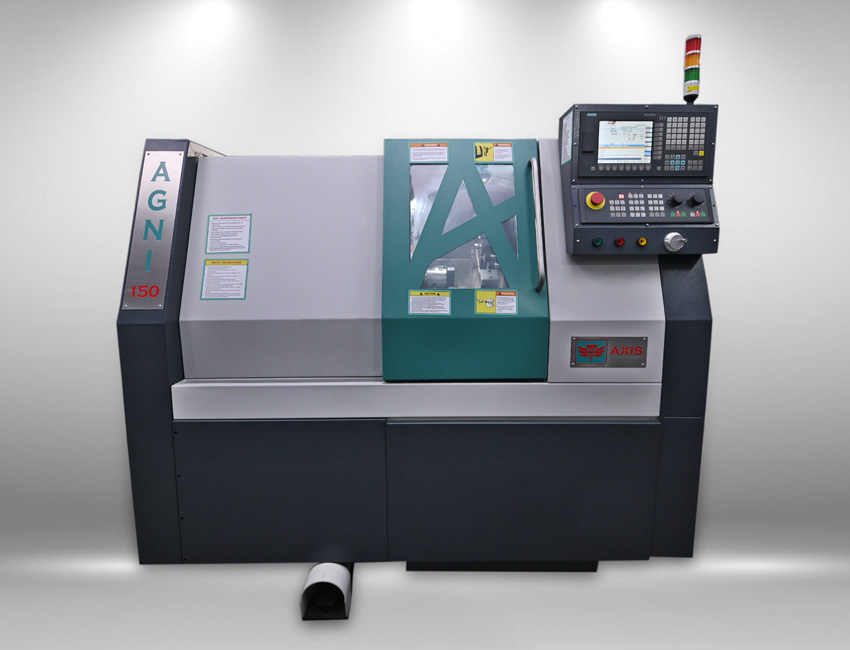

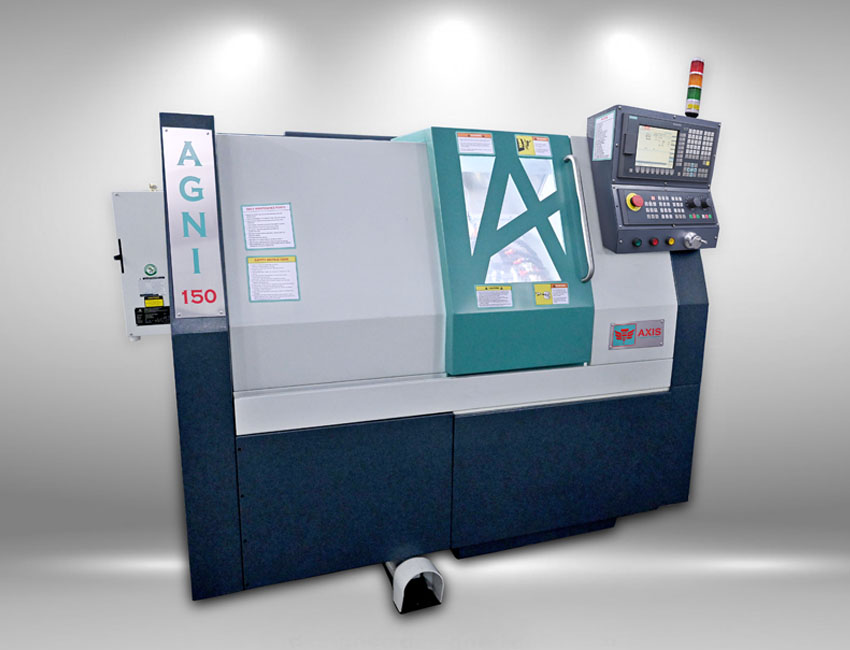

Agni - 150
| Controller System | Siemens / Fanuc |
| CAPACITY | |
| Swing Over Table | 200 mm |
| Swing Over Way Cover | 460 mm |
| Maximum Cutting Dia | 150 mm |
| Maximum Turning Length | 120 mm |
| SPINDLE | |
| Spindle Nose | A 2-5 |
| Bore Through Spindle | 50 mm |
| Maximum Bar Capacity | 40 mm |
| Maximum Spindle Speed | 3500 RPM |
| Spindle Motor Power | 3.7 KW |
| Standard Chuck Size | 165 mm |

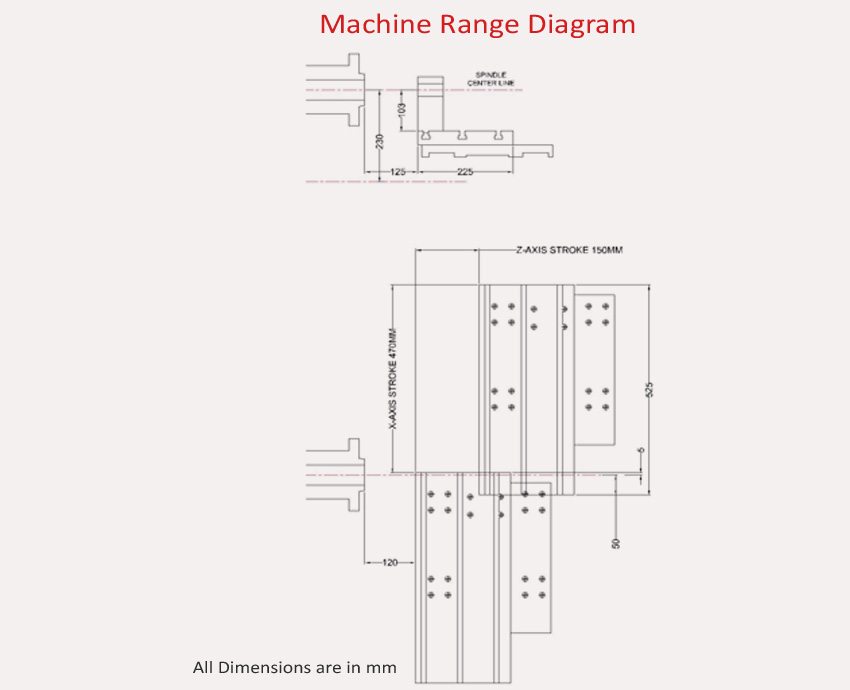

| AXIS | |
| X-Axis Stroke | 470 mm |
| Z-Axis Stroke | 150 mm |
| X & Z Axis Rapid Rate | 20 m/min |

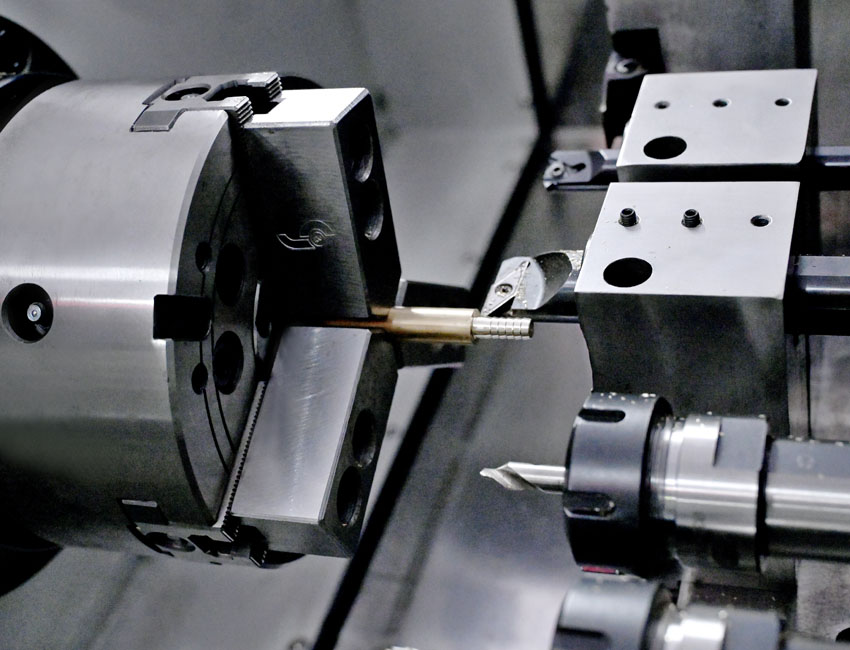

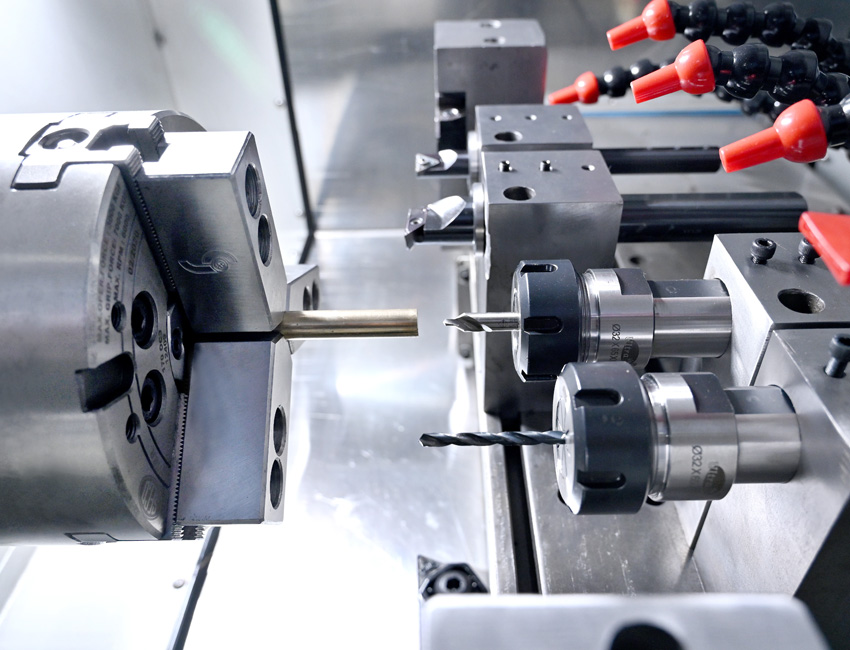

| TOOLING | |
| Tool Arragement | Liner - Gang Tooling |
| Borring Bar Dia Maximum | 32 mm |
| Od Turning Tool Size | 20 X 20 mm |
| HYDRAULIC & LUBRICATION SYSTEM | |
| Hydraulic Tank Capacity | 30 Llitre |
| Hydraulic System Pressure | 25 Bar |
| Lubrication Tank Capacity | 3 Llitre |
| Coolant Tank Capacity | 100 Litre |
| OVERALL MACHINE DIMENSIONS | |
| L X W X H | 1900 X 1500 X 1550 |
| OVERALL MACHINE WEIGHT | |
| Without Packing | Approx 1800 KG |
- Cartridge Spindle
- High Speed 3500rpm Spindle
- Liner Motion Guideways
- 20m/min Rapid Traverse Rate
- High Pricision Ground Ball Screw X And Z Axis
- Separate Coolant Tank With Easy Maitenance
- Slant Bad For Efficent Chip Disposal
- Servo Spindle And Axis Drives
- Liner Motion Guideways
- Automatic Centralized Oil Lubrication
- Basic Hydraulic System
- 20X20 OD Tool Holder Block (02 Nos)
- Ø25 Boring Bar Holder Block (04 Nos)
- Set of Sleeves
- Drawing And Tools Holding Side Plate Panel AC For Electricals
- Voltage Stabilizer
- Chip Conveyor
- Special Tool Holder Block
- Radial & Axiel Live Tool Attachment
Note : Owing to continuous up-gradation of our products, the specification may change and to be reconfirmed at the time of ordering. Features shown may not be part of the standard equipment.
