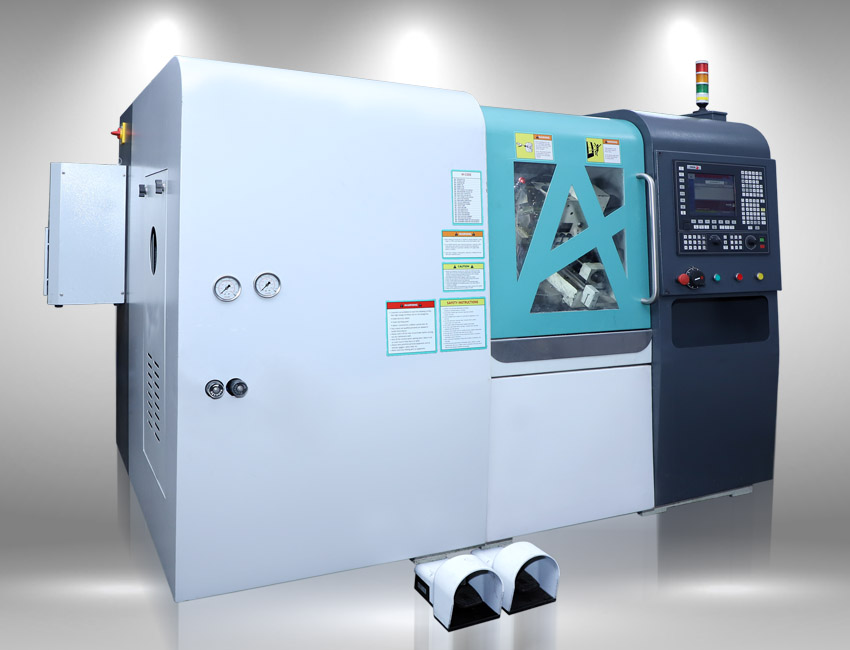

Agni - 170
| Controller System | Siemens / Fanuc |
| CAPACITY | |
| Swing Over Table | 450 mm |
| Swing Over Way Cover | 450 mm |
| Maximum Cutting Dia | 150 mm |
| Maximum Turning Length | 300 mm |
| SPINDLE | |
| Spindle | Collet |
| Clamp / Declamp | Hydraulic |
| Maximum Round Bar Capacity | 40 mm |
| Maximum Spindle Speed | 3500 RPM |
| Spindle Motor Power | 5.5 KW |
| Standard Chuck Size | 170 mm |
| AXIS | |

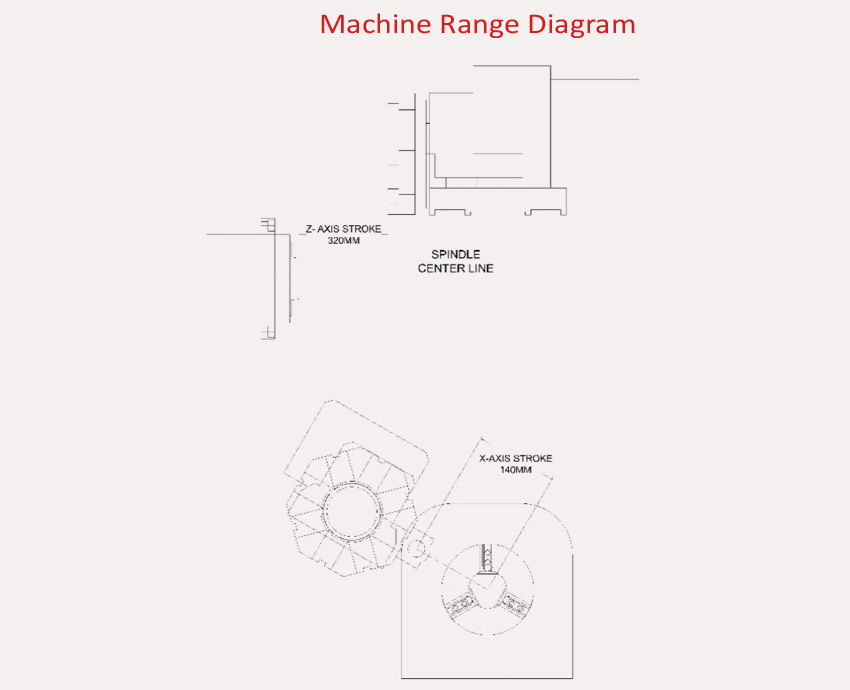

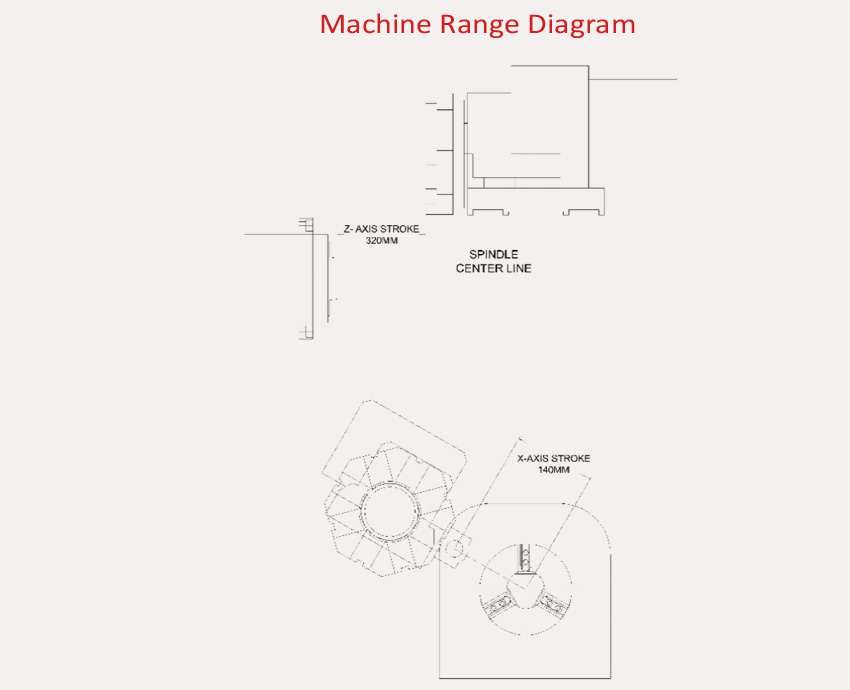

| X-Axis Stroke | 120 mm |
| Z-Axis Stroke | 325 mm |
| X & Z Axis Rapid Rate | 25 m/min |
| TOOLING | |

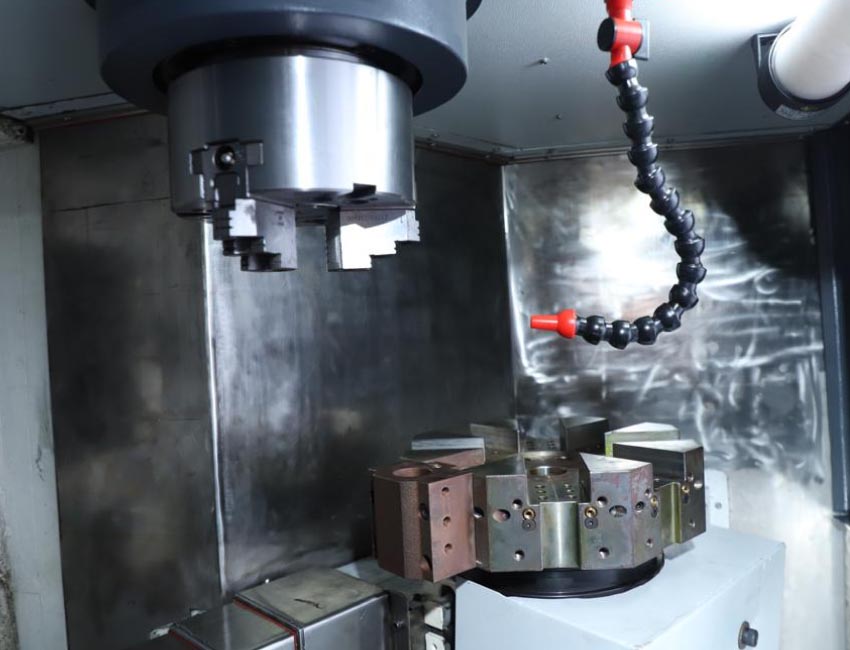

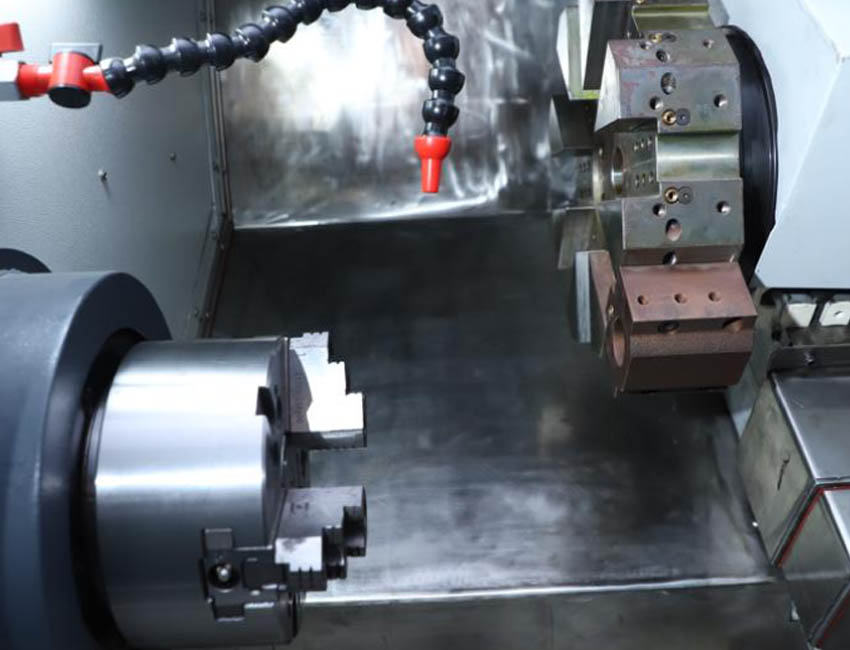

| Tool Arragement | 8 Station |
| Tool Turret | 80mm Servo Turret |
| Borring Bar Dia Maximum | 32 mm |
| Od Turning Tool Size | 25 X 25 mm |
| LUBRICANT & COOLING | |
| Lubrication Tank Capacity | 3 Llitre |
| Coolant Tank Capacity | 100 Litre |
| OVERALL MACHINE DIMENSIONS | |
| L X W X H | 2250 X 1500 X 1500 |
| OVERALL MACHINE WEIGHT | |
| Without Packing | Approx 3500 KG |
- A2-5 Collet Spindle
- High Speed 3500rpm Spindle
- Servo Turret
- Liner Motion Guideways
- 20m/min rapid traverse rate
- High Pricision Ground ball screw X and Z axis
- Separate coolant tank with easy maintenance
- Slant bad for efficient chip disposal
- Servo Spindle And Axis Drives
- Liner Motion Guideways
- Automatic Centralized Oil Lubrication
- 25X25 OD Tool Holder Block (02 nos)
- Ø32 Boring Bar Holder Block (03 nos)
- Set of Sleeves
- Drawing And Tools Holding Side Plate
- Panel AC For Electricals
- Voltage Stabilizer
- Chip Conveyor
- Special Tool Holder Block
- A42 Collet Chuck
Note : Owing to continuous up-gradation of our products, the specification may change and to be reconfirmed at the time of ordering. Features shown may not be part of the standard equipment.
