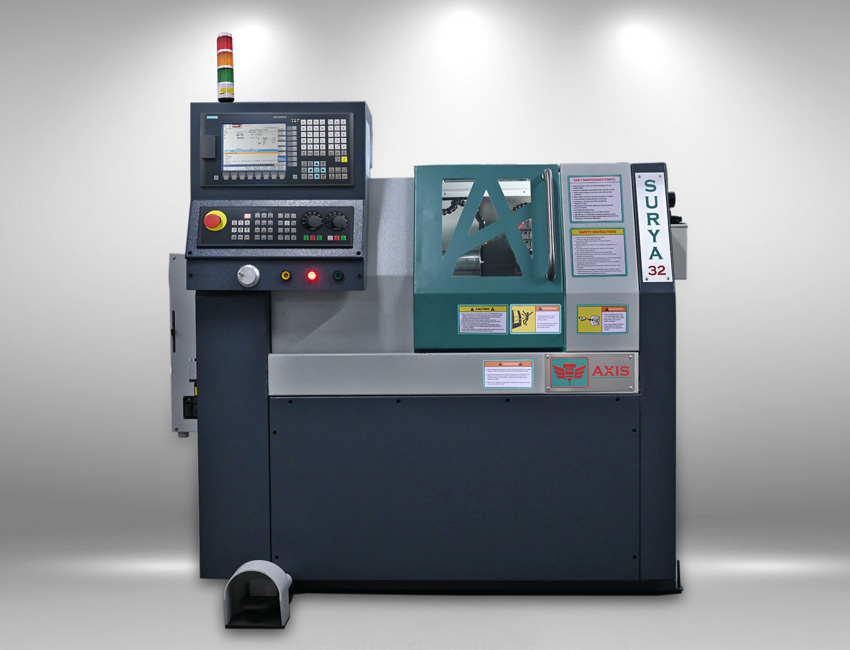

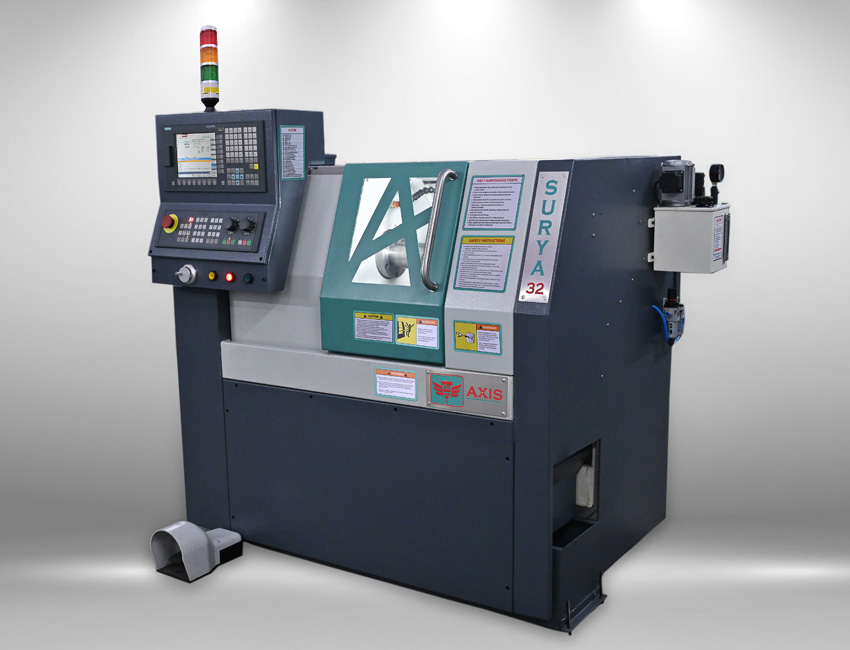

Surya - 32
| Controller System | Siemens / Fanuc |
| CAPACITY | |
| Swing Over Table | 100 mm |
| Swing Over Way Cover | 320 mm |
| Maximum Cutting Dia | 32 mm |
| Maximum Turning Length | 100 mm |
| SPINDLE | |
| Spindle | A 32 |
| Clamp / Declamp | Pneumatic |
| Maximum Bar Capacity | 30 mm |
| Maximum Spindle Speed | 3500 RPM |
| Spindle Motor Power | 2.2 KW |
| Standard Collet Size | A 32 |
| AXIS | |
| X-Axis Stroke | 240 mm |
| Z-Axis Stroke | 105 mm |
| X & Z Axis Rapid Rate | 15 m/min |
| TOOLING | |
| Tool Arragement | Liner - Gang Tooling |
| Borring Bar Dia Maximum | 25 mm |
| Od Turning Tool Size | 20 X 20 mm |
| LUBRICANT & COOLANT | |
| Lubrication Tank Capacity | 3 Llitre |
| Coolant Tank Capacity | 60 Litre |
| OVERALL MACHINE DIMENSIONS | |
| L X W X H | 1450 X 950 X 1350 |
| OVERALL MACHINE WEIGHT | |
| Without Packing | Approx 1050 KG |
- A32 Collet Spindle
- High Speed 3500rpm Spindle
- Liner Motion Guideways
- 20m/min Rapid Traverse Rate
- High Pricision Ground Ball Screw X And Z Axis
- Separate Coolant Tank With Easy Maitenance
- Slant Bad For Efficent Chip Disposal
- Penumatic Clamp And Declamp System
- Servo Spindle And Axis Drives
- Liner Motion Guideways
- Automatic Centralized Oil Lubrication
- 20X20 OD Tool Holder Block (02 Nos)
- Ø25 Boring Bar Holder Block (03 Nos)
- Set of Sleeves
- Drawing And Tools Holding Side Plate Panel AC For Electricals
- Voltage Stabilizer
- Chip Conveyor
- Special Tool Holder Block
- A2-4 Cartrige Spindle with Ø135mm Power Chuck And Hydraulic Rotary Cylinder
Note : Owing to continuous up-gradation of our products, the specification may change and to be reconfirmed at the time of ordering. Features shown may not be part of the standard equipment.
