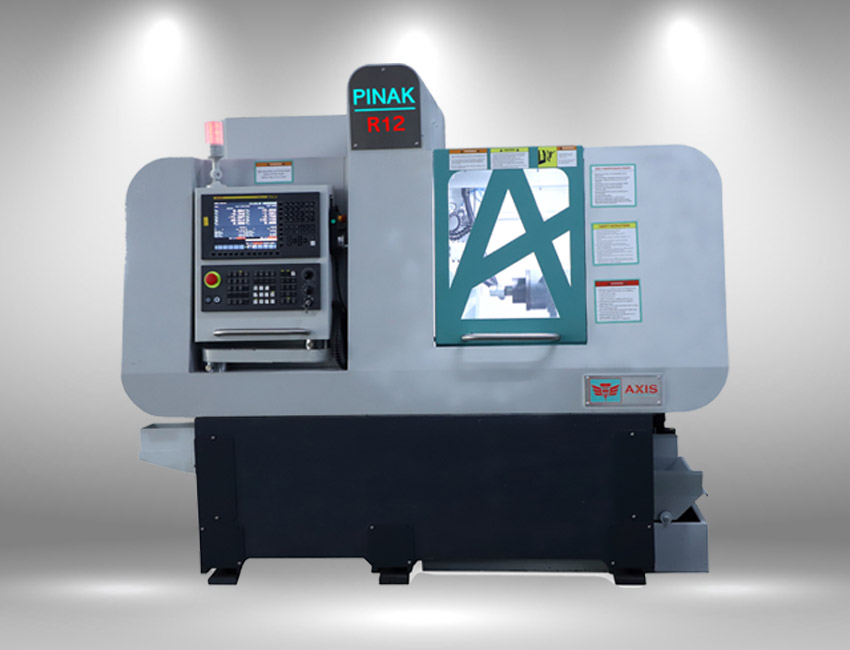

Pinak - R12
| Controller System | Siemens / Fanuc |
| CAPACITY | |
| Max Bar Capacity | 12 mm |
| Z1 Stroke | 135 mm |
| Maximum Turning Length | 125 mm |
| MAIN SPINDLE | |
| Speed (rpm) | 15,000 |
| Built-in Motor (kW) | 1.5 kW |
| Turning Tool X No. of Tools | Sq.12 X |
| Front tool Post bore Ø X No. of Tools | Ø16mm X 5 |
| Power driven tools X No. of Tools | ER11 X 4 |
| Max. Power Driven Tool Speed (rpm) | 4,000 |
| SUB SPINDLE | |
| Speed (rpm) | 15,000 |
| Built-in Motor (kW) | 1.5 kW |
| Front tool Post bore Ø X No. of Tools | Ø16mm X 4 |
| Power driven tools X No. of Tools | ER11 X 4 |
| Max. Power Driven Tool Speed (rpm) | 4,000 |
| LUBRICANT & COOLANT | |
| Lubrication Tank Capacity | 3 Llitre |
| Coolant Tank Capacity | 90 Litre |
| OVERALL MACHINE DIMENSIONS | |
| L X W X H (MM) | 2100 X 1250 X 1700 |
| OVERALL MACHINE WEIGHT | |
| Without Packing | Approx 2500 KG |
- The PINAK R12 Series Swiss type lathes Feature 15,000 rpm high-speed built-in spindle.
- This machine shows perfect performance for high-speed machining, small diameter applications.

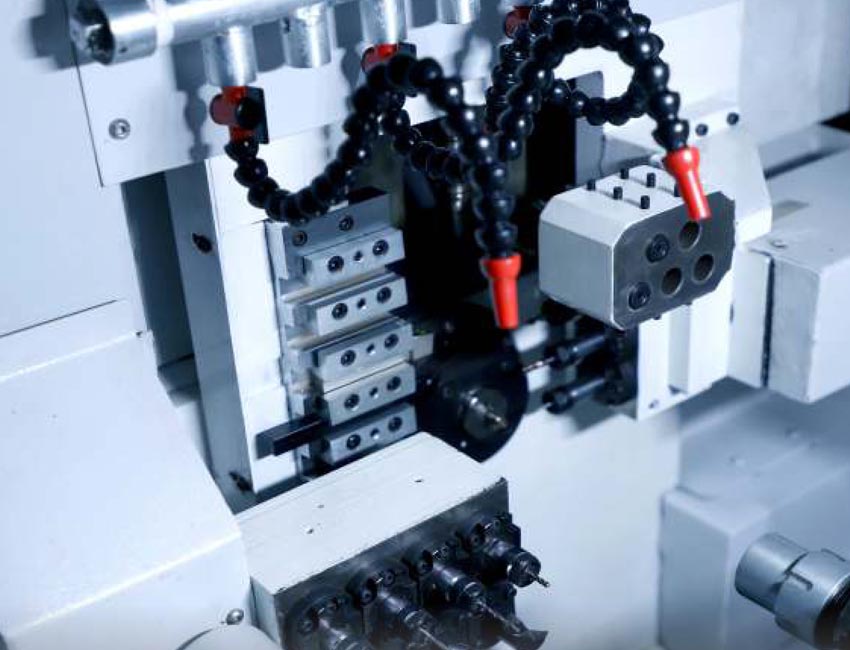

- Main Spindle Unit
- Back Spindle Unit
- Gang Rotary Tool Driving Unit
- Coolant Oil Unit
- Lubrica ng Oil Supply Unit
- Air-Driven Ejector Device
- For Back Machining
- Rotary Guide Bushing Unit
- Back Rotary Tool Driving Unit
- Machine Internal Ligh ng Equipment
- Workpiece Auto Conveyor Unit
- Spindle Oil Chiller
- 3-colour Signal Light
- Air Blast for Back Spindle Collet Clean
Note : Owing to continuous up-gradation of our products, the specification may change and to be reconfirmed at the time of ordering. Features shown may not be part of the standard equipment.
